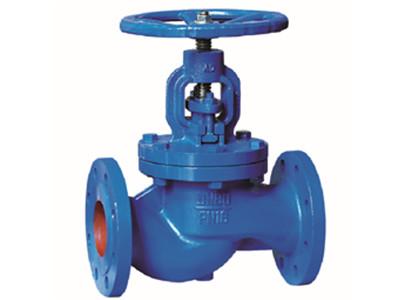

DIN Globe Valve
Cast Iron Globe Valve
Main parts and materials
|
Parts Name
|
Materials
|
|
Body
|
DIN 17245 GS-C25+CR13 .DIN 17245 GS-C25+STL .
DIN17245 GS-C25+STL
|
DIN 17445 1.4308
|
DIN 17445 1.4408
|
|
stem
|
ASTM A182 F6A
|
ASTM A182 F304
|
ASTM A182 F316
|
|
dise
|
DIN 17245 GS-C25+CR13 .DIN 17245 GS-C25+CR13 .
DIN17245 GS-C25+STL
|
DIN 17445 1.4308
|
DIN 17445 1.4408
|
|
bonnet
|
DIN 17245 GS-C25+CR13 .DIN 17245 GS-C25+CR13 .
DIN17245 GS-C25+CR13
|
DIN 17445 1.4308
|
DIN 17445 1.4408
|
standards
|
Design and Manufacture
|
Face to Face
|
Flange End
|
INSPECTION
|
|
BS 1873,BS EN 558-1
|
DIN3202,EN 1092-1
|
DIN2543DIN2544DIN2545DIN2546
DIN2547DIN2548
|
DIN3230
|
Test pressure
|
Nominal Pressure
(MPa)
|
Strength Testing
(MPa)
|
Seal Test
(MPa)
|
|
1.6/2.5/4.0/6.3
|
2.4/3.8/6.15/9.75
|
1.8/2.8/4.51/7.15
|
